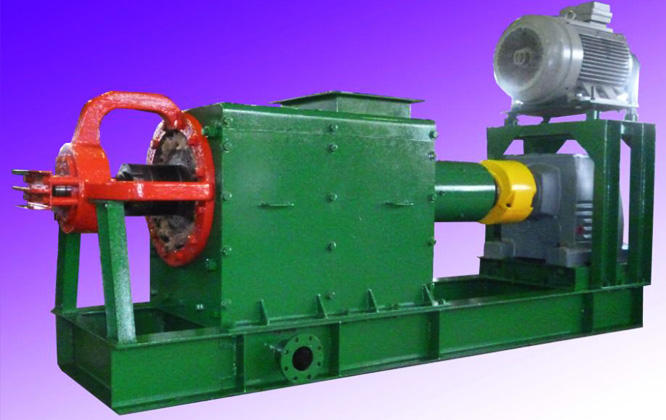

EMPTY BUNCH SNIPPER PRESS
Machine Description
- To extract press liquor contained in the empty bunch.
- Recovered oil from empty bunch would not cause any emulsification during mixing in the clarification tank.
- Recovered oil - 0.40 % to FFB
- Fibre length – 2” – 3” Long
Composition of EFB after snipper press
- Oil content - 0.20 % to FFB
- Moisture content - ± 40 - 45%
Specifications
Model : HF Snipper Press
Machine Capacity : 30 Tonnes/Hr FFB Mill
Main Body : Mild Steel Plate
Main Screw : Cast Steel c/w Hard Facing
Cutter and Fixed Knives : Cast Steel c/w Hard Facing
Press Cage : Stainless Steel 304
Base Frame : H – Beam
Motor : 150 HP / 110 KW (Hur Far or equivalent)
Gearbox Type : Elecon SCN 355/SO/POD Ratio : 1/56
Bearing : SKF or equivalent
Maintenance cost (± 800 hours) : ± RM 0.17 / tonnes FFB processed
EFB before snipper press
EFB after snipper press
|
|
