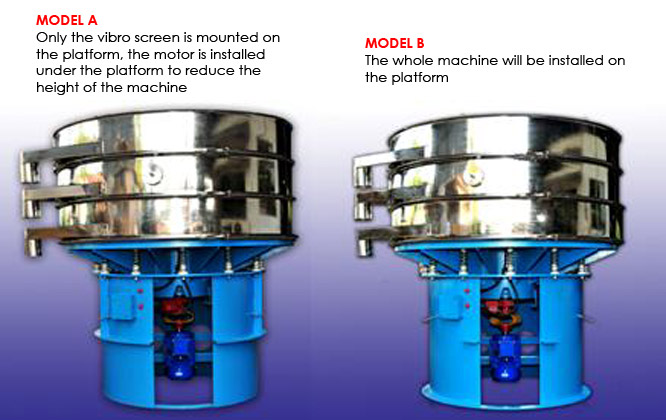

Description of the technology

• Efficient separation system for press liquor to remove fine and course solids.
• Consist of vertical type motor that facilitate three dimensional motions.
• Capable of circular and elliptic motion in horizontal, vertical and inclinational direction.
• Provides superior performance by dispersing the press liquor from the center equally on the screen- mesh surface fully utilized.

Advantages

• High separation efficiency
• Lower maintenance cost (RM 0.03 / tonnes FFB processed)
• Easy to maintain & reduce down time.
• Longer screen durability (2-4 months)

Specifications
Mill Processed : 30 tonnes / hr FFB
Machine capacity : 30 tonnes / hr FFB
Motor : 4 HP 415V, 50 Hz, 1500 rpm.
1st Deck : 20 MG Mesh, SS 316 screen
2nd Deck : 40 MG Mesh, SS 316 screen
Screen Diameter : 60” - Total screen area 1.8 m²
