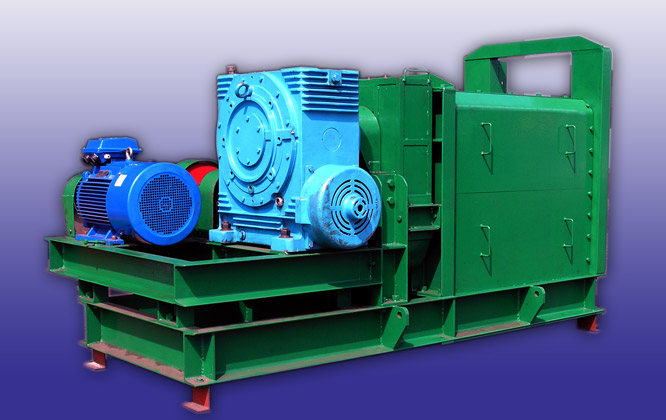

DOUBLE DECK ROLLER CRUSHER MACHINE (Maximizing the recovery of fruits)

Machine Description
  • This machine is to loosen partially unstripped bunches after threshing. All empty bunches after thresher is fed into Roller Crusher which rejects only hard bunch.
  • About 10 – 12 % of the fruits attached to the unstripped bunch will detach.
  • The remaining fruitlets (80 – 90%) attached to the empty bunch after the roller crusher will be detached in the thresher.
  • Recovery rate
    Oil - 0.6% to FFB
    Kernel - 0.3 – 0.4% to FFB
  • Total maintenance cost : RM 0.03 /tonnes FFB processed
    (Top roller - for every 5,000 hrs = RM 0.019/FFB processed)
    (Second stage roller - for every 8,500 hrs = RM 0.011/FFB processed)

Specifications
Mill Processed : 60 tonnes / hr FFB
Machine capacity : 14 tonnes / hr EFB
Model : Hur Far
Motor : 30 HP / 22 KW (Hur Far or equivalent)
Gearbox Type : Elecon or equivalent
Roller : Cast Steel
Dimension : 101” L x 50” H x 44” W (256cm L x 127cm H x 112cm W)
